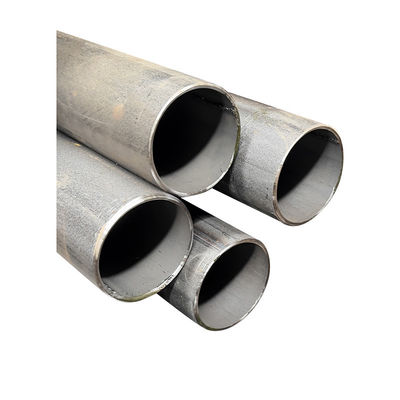

ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length

ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length

ขั้นต่ำ: 1 ตัน
ราคา: 800-1000 USD/Tons
การบรรจุแบบมาตรฐาน: ในชุดรวมหรือในกล่องไม้
ระยะเวลาการจัดส่ง: 20-30 วันสำหรับผลิตภัณฑ์
วิธีการจ่ายเงิน: L/C, D/A, D/P, T/T, Western Union, MoneyGram
ความสามารถในการจัดหา: 60000 ตัน/ตันต่อปี
ข้อมูลรายละเอียด
สถานที่กำเนิด
เจ้อเจียง/จีน
ชื่อแบรนด์
TORICH
ได้รับการรับรอง
ISO9001 ISO14001 TS16949
หมายเลขรุ่น
ASTM A178
ใบสมัคร:
ท่อโครงสร้าง ท่อบอยเลอร์
มาตรฐาน:
ASTM, GB, DIN, API, BS
เส้นผ่านศูนย์กลางภายนอก (รอบ):
5 - 120 มม
ความหนา:
2 - 120 มม
เทคนิค:
ดึงเย็น, ERW, รีดร้อน, รีดเย็น
ความยาว:
3-12m, 1-12m / ตามคำขอของลูกค้า
รองหรือไม่:
ไม่เป็นรอง
คําอธิบายสินค้า

ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 0

Electric-Resistance-Welded (ERW) Tubes are key welded steel products manufactured via the electric resistance welding process. In this process, flat steel strips or coils are formed into cylindrical shapes, and their edges are fused using high-frequency electrical resistance heat without adding filler metal. ERW tubes offer advantages such as high production efficiency, stable dimensional accuracy, and cost-effectiveness, making them widely used in the energy, industrial, construction, and other sectors.
Their materials are mainly classified into carbon steel, carbon-manganese steel, and austenitic stainless steel. Carbon steel, with a carbon content of ≤0.25%, exhibits good weldability and ductility while being economical, suitable for general fluid transportation and low-load structural components. Carbon-manganese steel, containing 1.00–1.60% manganese, has superior high-temperature strength and creep resistance, and is used for boiler tubes and medium-temperature superheater tubes. Austenitic stainless steel, with chromium content ≥16% and nickel content ≥8%, features excellent corrosion resistance and high-temperature stability, making it applicable to corrosive environments such as chemical and marine industries, as well as high-temperature heat exchangers.
In terms of specifications, ERW tubes comply with international and industry standards including ASTM A178/A178M, ASTM A249/A249M, and API 5L, which cover dimensions, manufacturing processes, and other aspects. Typically, their outside diameter ranges from 0.5 inches (12.7 mm) to 24 inches (609.6 mm), and wall thickness ranges from 0.015 inches (0.4 mm) to 0.5 inches (12.7 mm). For length, both random lengths (16–24 feet / 4.9–7.3 meters) and fixed lengths (customizable) are available, and small-diameter tubes can also be supplied in coils.
Chemical compositions vary by material grade; for example, carbon steel Grade A under ASTM A178/A178M contains 0.06–0.18% carbon and 0.27–0.63% manganese. Mechanical properties also differ among grades: carbon-manganese steel Grade D under the same standard has a minimum tensile strength of 70 ksi (485 MPa), a minimum yield strength of 40 ksi (275 MPa), and a minimum elongation of 30%.
In terms of applications, ERW tubes are used in boilers, superheaters, and oil-gas transportation in the energy and power sector; in heat exchangers and mechanical structures in industrial manufacturing; as structural supports and municipal pipelines in the construction and infrastructure field; and they also find applications in specialized fields such as nuclear power, military industry, and medical and food industries.



ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 1



ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 2ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 3

ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 4

ASTM A178 Resistance Welded Steel Tube For High Application 1-12m Length 5



Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.



Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
